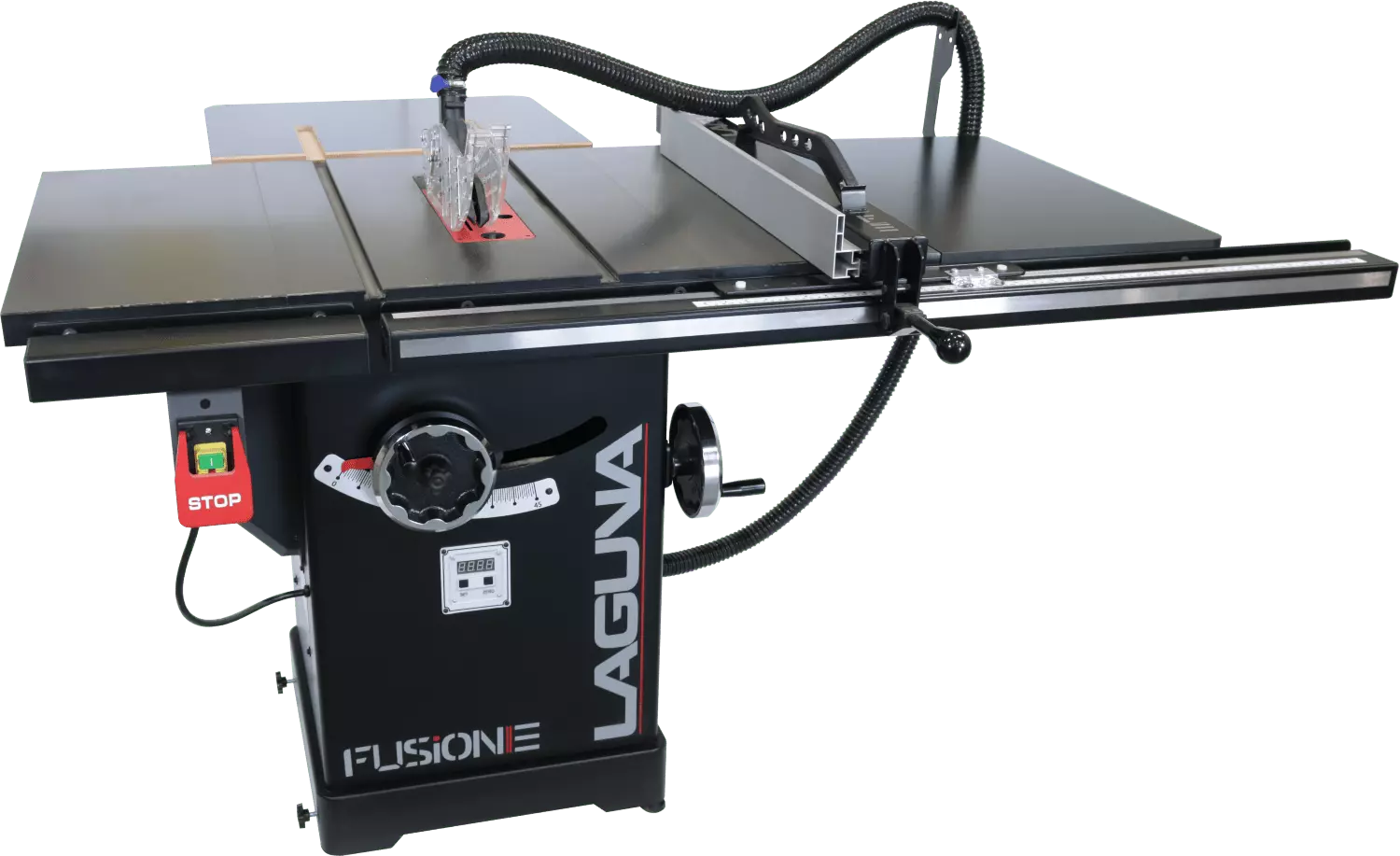

Laguna Fusion F3 Table Saw

Overview

Cabinet-saw capacity on a single-phase 220V circuit

The Laguna Fusion F3 is a 10-inch hybrid table saw built for home and small professional shops that want cabinet-saw capacity on a single-phase 220V circuit. This model, MTSF3362203-0130, is configured with a 36-inch rip capacity and a 3 HP TEFC motor, giving you the power and space to handle sheet goods and hardwoods with confidence.

• ✓ 3 HP TEFC motor, 220V
• ✓ 36-inch rip capacity
• ✓ 3-1/8 inch depth at 90 degrees
• ✓ Accepts dado stacks to 13/16 inch

Feature 01

3 HP TEFC motor

A 3 HP totally enclosed, fan-cooled motor runs on 220V single-phase power, which is available in many home and small shops. The enclosed design keeps dust out of the motor windings, while the horsepower lets you rip thick hardwoods with steady blade speed.

Feature 02

Room for sheet goods

This configuration offers a 36-inch rip capacity, giving you room to break down plywood and other sheet goods or cut wide panels for cabinetry and furniture. Wide rip capacity reduces the need for workarounds when handling larger stock in a busy shop.

Feature 03

Deep cuts and dado capability

The saw delivers a maximum depth of cut of 3-1/8 inches at 90 degrees and 2-1/8 inches at 45 degrees, handling thick stock and bevels. Its 10-inch blade mounts on a 5/8-inch arbor, which also accepts dado stacks up to 13/16 inch for grooves and joinery.

Feature 04

Ready to work

A 4-inch dust port connects to your dust collection system to help keep your shop cleaner. The saw includes a 10-inch 60-tooth carbide-tipped blade, so you can begin making clean crosscuts and rips once the saw is assembled and set up.
